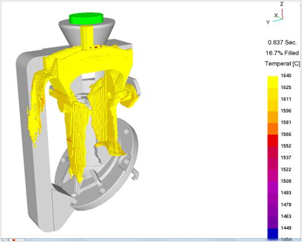

To ensure the success in product development, at the
same time scheme dispenses with the traditional test, flaw detection
was time-consuming and high cost, realize the rapid development and
enhance the market competitiveness and advantage. Mass production of
continuous optimization and improvement of process plan process, the
casting costs to a minimum, so that customers and factories may be
the largest profit maximization. |
 |
CMM: SHEFFIELD MEASUREMENT Coordinate Measurement Machine. Measuring range: X:500mm, Y:600mm, Z:400mm. Precision: 0.0001mm. Function: 3D measurement, length, angle and position. |
 |
Implement microscope: Enlarge multiple
225X; measure area 5mm2; precision 0.006mm; Function: To enlarge partial surface for inspection, take partial photo, take the shape and transfer to AutoCAD 2D drawing for measuring length and angle. |
 |
Profilometer: sanfeng CV-1000, curved surface, outline, Angle
measurement, the precision: 0.0001 mm, range: 50 mm X axis, the Z
axis 25 mm |
 |
Tensile test machine: For testing the Yield Strength, Tensile Strength, Elongation, Reduction of Area and the Hardness of material.
|
 |
Spectrometer: We import the SPECTROLAB spectrometer to analysis the elements of raw material and casting.
|
 |
Overhead projector: USA SCHERR TUMICO QC20-35000. Measurement range: X:250mm, Y:100mm, Precision: 0.001mm, Function: 2D measurement, length, angle and position.
|
 |

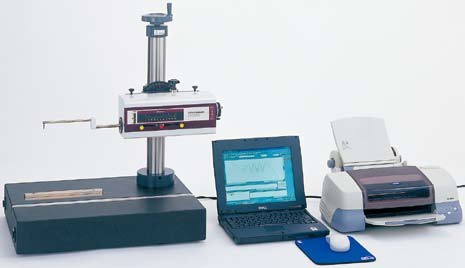

Roughness instrument: Mitutoyo SL-201P. Measurement range: Ra, Ry, Rq and Rz, Precision: 1um. Using for surface roughness measurement.
|
 |
Hardness instrument: Type: Rockwell. Measurement range: HRB HRC, Precision: 1HRB/HRC. Using for product hardness test.
|
|
