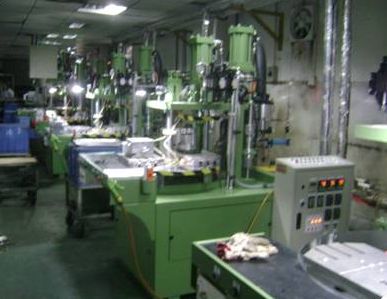

Wax injection(1): This is the wax injection room as shown
in photo, the environment of wax injection for year-round
constant temperature control to ensure the process of making the
wax parts.
|
 |

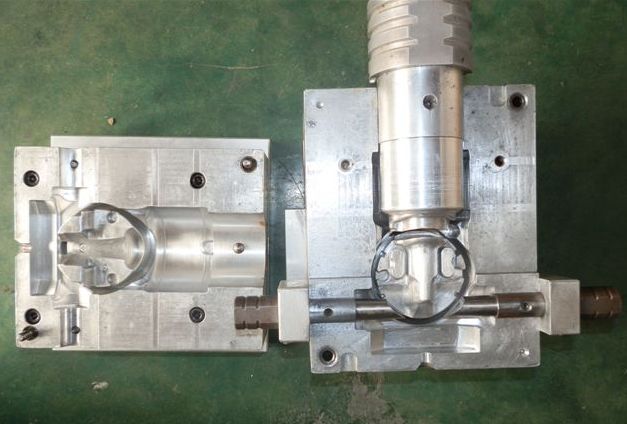

Wax injection (2): Wax tool is the critical to be a datum for
controlling the casting dimension and an important criterion for
casting precision, our wax tools are made of aluminum and the
precision machining equipment from the Taiwan manufacturing
industry.
|
 |

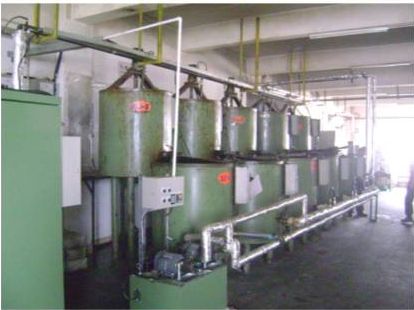

Wax injection(3): Wax supply: Wax is related to the
casting quality and dimension, with the automatic wax supply, the
recycled wax with rapidly water removing, stirring and filtering
will be conveyed to the wax injection station.
|
 |
Wax injection (4): Wax injection: Different from
the traditional single tank machine for wax injection, we use the
turntable type wax injection machine with two independent tanks to
supply the wax in a rapidly and high-efficiency way and ensure the
casting quality.
|
 |
Wax injection(5): This is the photo showing the process for
wax-trimming and removing the burrs from the wax pattern.
|
 |
Wax injection (6): This is the tree
assembly process, the qualified wax patterns that pass the
inspection will be assembled to start the casting process. P.
|
 |
Wax injection(7): During transferring the wax tree
to the next process, we will implement the heat number control to
clearly mark it based on a furnace per car and reach the FIFO for
products.
|
 |
Wax injection (8): After wax assembly process, we¨ll clean away
the dust and crumbs on the surface of wax pattern, which can
enhance the adhesion of wax pattern to the shell-building and
ensure the casting quality.
|
